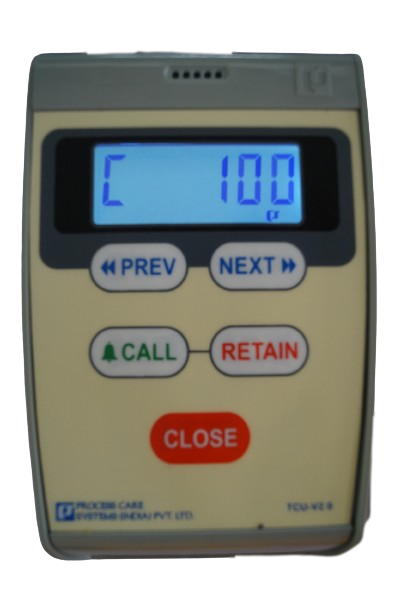

Token Calling Unit (TCU)

TCU is designed to have ‘CALL’, 'RETAIN‘ and 'CLOSE' keys along with two navigation keys 'PREV' & 'NEXT‘. Tokens can be chosen by browsing through the token queue using navigation keys and call randomly if required. ‘RETAIN’ key helps in holding back the service seekers to call them again. Low power 7 segment LCD module provides for good Human Interface.

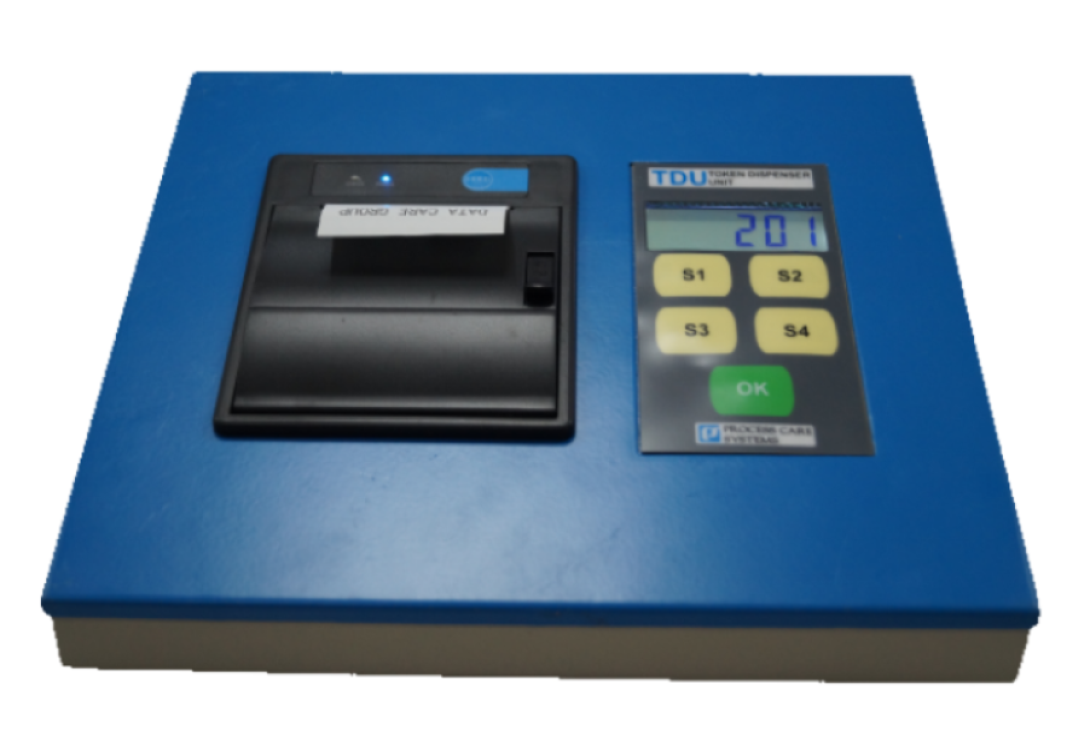

Token Dispensing Unit (TDU)

Token Dispensers are employed to get the token printed and to register service request. The tokens generated for different services will be put into respective logical queues and are called by Token Calling Units.

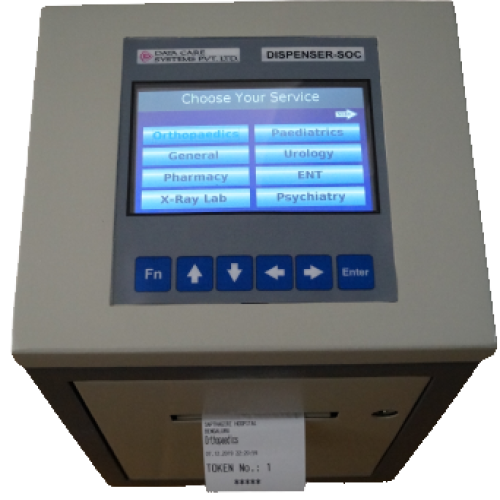

Heavy Duty Token Dispensing Controller

This module makes use of System on Chip processor and gets interfaced with Multi-color 5 LCD panel enabling the user to have about 60 services by flipping the screens.The Token is printed using a very reliable heavy duty printer which has capability to house a paper roll sufficient to print max. of 1000 tokens.

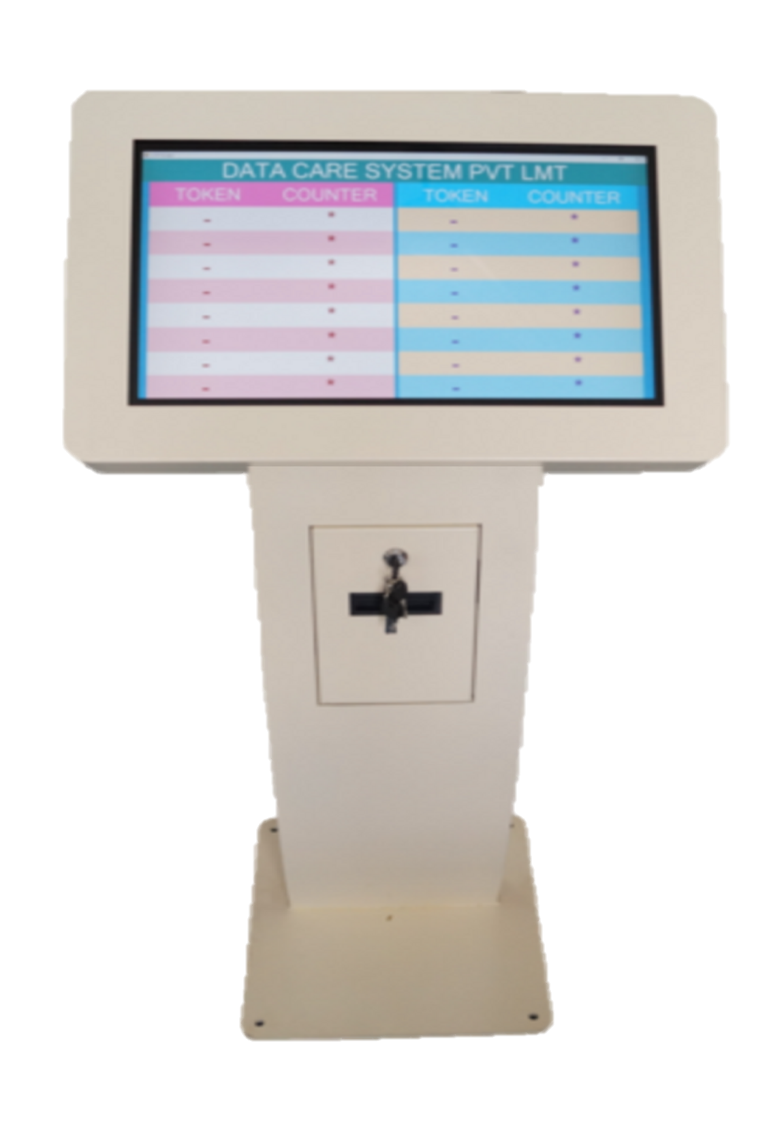

Token Dispensing KIOSK

Touch Screen Kiosk will display a range of services offered. When customer selects a service, panel printer associated with kiosk prints a ticket with token number, turn number, Service name and time of entry. As they know turn number, customers will be in the virtual queue & know approximately when they are going to be called. Makes use of Heavy Duty Printer and 19" Monitor.

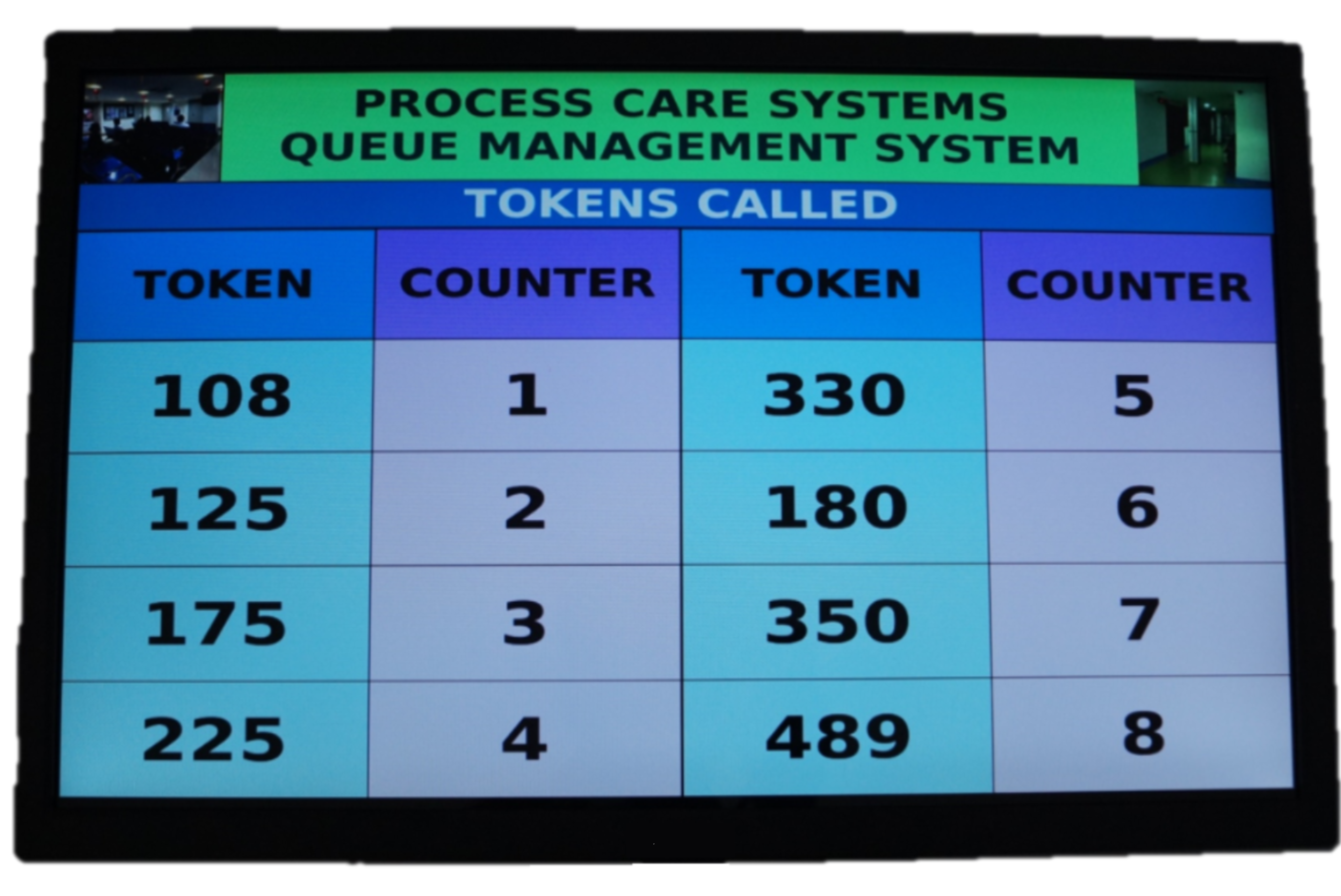

Waiting Hall Display

LCD TVs are used to display the called tokens and to direct them to the proper destination. This can be configured to be shared by many Calling Units. There can be several such displays deployed at different places either to put same information everywhere or different information from different Token Calling Units.
