          Assisted living with emergency medical care is becoming essential for senior citizens as their children are compelled to take up assignments far away from their home towns. Such living homes must have Panic button facility at every living room and wash rooms through which alarm can be raised and notified at central medical care/security station.

          Panic Alarm System designed to get connected to 4 Panic buttons deployed in living rooms and 4 Emergency Units in the wash rooms. Call from Emergency Units is distinguished from living room buttons so that higher priority can be assigned to such calls.

          The system also provides for a centralised Panic Alarm Controller along with an LCD display of suitable size (opted by the customer) to be positioned at Central Medical care/Security station. Any alarm triggered from any of the homes will be shown on the display along with Voice message to alert staff available at the station. The system does not allow for clearing the call from Centralised station itself although it allows for acknowledging the call and thereby muting the Voice alert. This makes sure that the care givers reach the source of alarm and then clear the pending calls.

          Connectivity of the Panic buttons is established through backend communication devices interconnected in Tree structure to minimize cabling. The system allows for a maximum of 3840 calling points to be scanned in less than a second for immediate notification at the centralised station.


  • Very low working voltage ensures resident safety
  • Door Indicator helps locating the home raising the alarm
  • Allows for large LCD TV connectivity at the centralised station to view many simultaneous calls that may occur
  • Hi-Fidelity Voice alert helps care givers to look into other parallel activities
  • Provides for call escalation of long pending calls by sending SMS alerts to different groups at 3 different levels
  • Voice volume can be set at different levels for different time slots

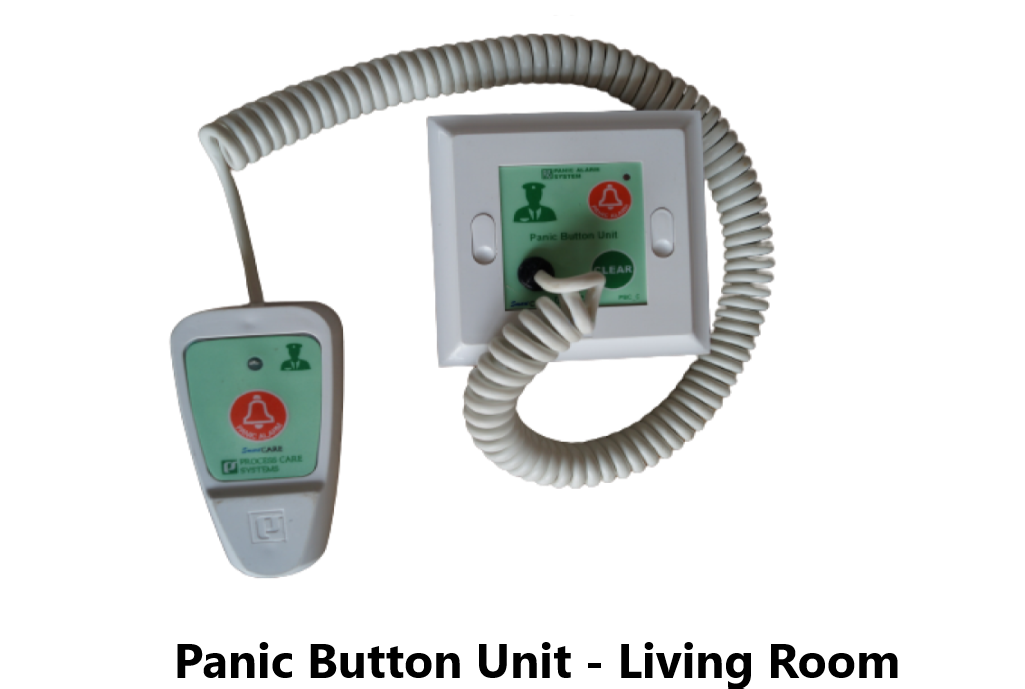

Panic Button Unit (PBU)

  • Houses 2 feather touch keys (PANIC ALARM, CLEAR) to raise an alarm and clear the alarm respectively.
  • Integrated LED indicator to show call status.
  • Gets integrated with the Palm switch for initiating a call from the bed itself.
Your Image

Toilet Emergency Unit (TMU)

  • Houses a pull cord switch to raise an alarm at the Panic Alarm Controller (PAC).
  • Integrated with LED indicator to show call status.
Your Image

Door Indicatior (DI)

  • Houses Multi-colour super bright LEDs.
  • Uses a semi circular plastic housing to enable viewing from along the length of the corridor.
  • Lights up in different colours to indicate different types of calls.
Your Image

Panic Alarm System Software

          Software for PAS (Panic Alarm System) can be installed in a PC connected to the panic Alarm Controller through LAN port. The PC can be position at a vantage space to view the reports.

  • Collecting the status of all the calling units.
  • Date and Time stamping and storing all the events in a database.
  • Real-time display of calling unit’s status.
  • Generating a variety of management information reports to manage & and deploy staff appropriately.

Alarm System Architecture

Panic Architecture
