Nurse Call System - Elegant

Models of Nurse Call System:

 Elite+
 Elegant
 Esteem-GSM
 Esteem-Sleek
 NCS-OPD

Working of NCS-Elegant

       This model is designed to be very cost effective with only essential features. It can be used to upgrade existing electrical buzzer system. For new installations just a 2 pair economical cable including telephone cable can be used. One Nurse Station Display can be shared by up to 48 calling points. Makes use of very few backend communication devices apart from front end components..

Enhanced Features


  • Call forwarding  Lean hours definition can be done at respective Nurse Station through the Menu key. When a particular Station is inactive, its calls can be escalated to other Nurse Station which in turn is configurable.
  • High fidelity Call descriptive announcement eg: Bed Call, Long Call, Toilet Call etc. status.
  • Volume control setting through navigation keys on the keypad.
  • Configuration of different volume levels based on RTC(4 different time ranges).
  • Calls are displayed in the order of originating time
  • Loading room names and configuration through pen drive.
  • SMS alerts can be sent for escalated calls.
  • Provision to get alerts and to view call status of all Nurse Stations from one or more Multi Mode Display Panels(MMDP) configured as Supervisory Station.
  • Report generation through NCAS software running on the PC which will get all information through TCP/IPport.




NCS Specifications:

Modules:

Call Processing Module:

Enterprise display             CPM Designed around a system-on-chip processor, it collects information through Nurse Call Multiplexer: and sends indicator information to Nurse Call Multiplexer . It shows call information and room numbers on an LCD TV and announces call status with high-quality voice. It provides a user interface through a keypad to configure the system..


                                            Specifications:

Dimension :272W X 82H X 200D mm,
Weight :1.5 Kg
Power :230 V AC +/-10%, 50 Hz, 50 watts
Mounting :Table Top
Material :ABS Plastic Enclosure,

LCD TV-NURSE STATION DISPLAY



This LCD TV is sourced from a third party and is used for both audio announcement and visual display in multicolor. If higher decibel voice is required external speaker can be added.


MBCU
Specifications:

LCD display     :19” Display
Resolution     :1024x768 pixels (min)
Input interface   :HDMI
Power    :36 watts
Mounting    : Table Top





Nurse Call Multiplexer:


            It allows for 16 bedside calling units or 16 toilet calling units. It uses 4 pairs of wires to interconnect with CPM-i. It can utilize PIX units to connect more than 16 calling units. A maximum of 6 PIX units can be connected to the multiplexer System can connected to maximum 64 call units.
Calling Unit

Specifications:

Dimension :328 X 140H X 75D mm
Power :230 V AC +/-10%, 50Hz, 15 watts.




Bed Calling Unit


            The unit is designed with soft touch key pad consisting of one key for call initiation and another for clearing call which is required to be done by the nurse attending to the patient.
Calling Unit             Additional push button switch is integrated to this unit by means of a coil cord to enable a patient to initiate a call from the bed itself.

Specifications:

Dimension :118mm (L) X 90mm (W) X 53mm (H)
Weight :160 g
Material :Plastic Enclosure

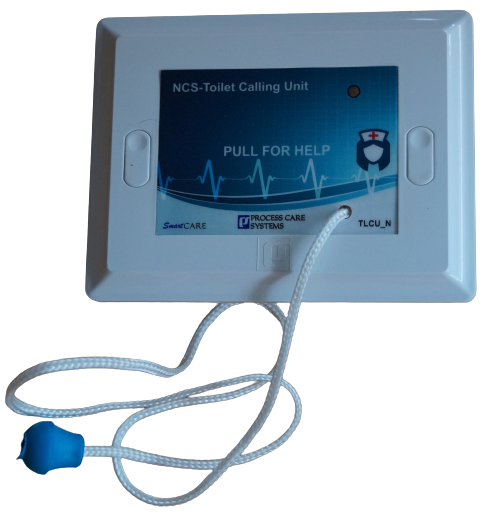

Toilet Calling Unit

Toilet Unit
             Here call is originated by pulling the cord and can be cleared by pulling it again. The LED indicator lights up if call is active. This allows the patient to initiate a call from squatting positions itself.

Specifications:

Dimension :118mm (L) X 90mm (W) X 53mm (H)
Weight :90 g
Material :Plastic Enclosure



Door Indicator

            These semi circular shaped indicators can be mounted on the wall near the patient's door so that , nurse walking through the corridor can see it from a distance.These are made of super bright LEDs to indicate patient's call pending which can be seen from the corridor itself. Door indicator

Specifications:

Dimension :100mm (diameter) X 60mm (H)
Weight :73 g
Material :Plastic Enclosure


Models of Nurse Call System:

Call Processing Module:

  • Dimension         : 272W X 82H X 200D mm,
  • Material              : ABS Plastic Enclosure,
  • Power                 : 230 V AC +/-10%, 50 Hz, 50 watts
  • Weight                : 1.5 Kg
  • Mounting            : Table Top

Nurse Call Multiplexer:

  • Dimension        : 325W X 140H X 52D mm
  • Material             : MS Enclosure ,
  • Power                : 230 V AC +/-10%, 50 Hz, 50 watts
  • Weight               : 1.75 Kg
  • Mounting           : Table Top

Multi Mode Display Panel (MMDP):

  • Dimension         : 272W X 82H X 200D mm,
  • Material              : ABS Plastic Enclosure,
  • Power                 : 230 V AC +/-10%, 50 Hz, 50 watts
  • Weight                : 1.8 Kg
  • Mounting            : Table Top

LCD TV:

  • LCD display      : 19” Display,
  • Resolution         : 1024x768 pixels (min)
  • Power                 : 36 watts,
  • Input interface  : HDMI
  • Mounting            : Table Top

Bed Calling Unit:

  • Dimension         :118L X 90W X 53H mm
  • Material              : Plastic Enclosure,
  • weight                 : 140 grams

Toilet Calling Unit:

  • Dimension         : 118L X 90W X 53H mm
  • Material              : Plastic Enclosure,
  • weight                 : 90 grams

Door Indicator:

  • Dimension         : 100mm DIA X 60 mm(D)
  • Material              : Polycarbonate,
  • weight                 :73grams
